Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Outline: | 243×146.5×3.6 Mm |
| Contrast Ratio: | 500:1 (Typ.) | ||
| High Light: | industrial touch screen display,industrial lcd panel |
||

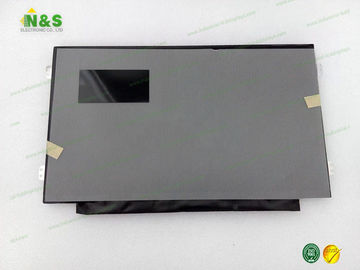

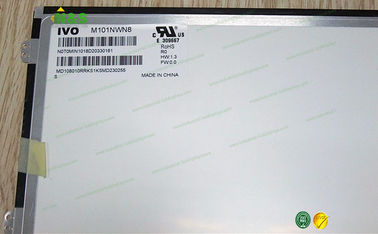

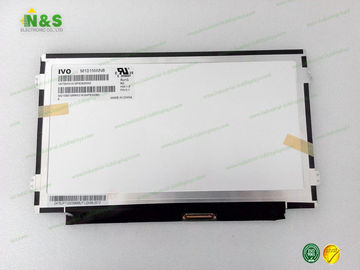

M101NWN8 R0 Basic Information
| Panel Model | M101NWN8 R0 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
M101NWN8 R0 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 155 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0543×0.1629 mm (H×V) |
| Pixel Pitch | 0.1629×0.1629 mm (H×V) |
| Weight | 170g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 222.521×125.107 mm (H×V) |
| Bezel Area | 225.72×128.28 mm (H×V) |
| Outline Dimension | 243×146.5 mm (H×V) |
| Outline Depth | 3.6 (Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M101NWN8 R0 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.60 (Max.)(5/13 points) |
| Sunlight Readable | N |
| Panel Model | Brand | Size | Resolution |
| C039SWP6-0 | IVO | 4.0" | 480×800 |
| C054SWZ4-1 | IVO | 5.4" | 540×960 |
| C054SWN4-0 | IVO | 5.4" | 540×960 |
| C045SWY2-2 | IVO | 4.5" | 480×854 |
| C023SN21-0 | IVO | 2.3" | 240×320 |
| C039SWP4-0 | IVO | 4.0" | 480×800 |
| C039SWN1-1 | IVO | 4.0" | 320×480 |
| F101NWN7-0 | IVO | 10.1" | 1920×1200 |
| C043GW32 R1 | IVO | 4.3" | 480×272 |
| C045SWY1-4 | IVO | 4.5" | 480×854 |
| C050SWY7-1 | IVO | 5.0" | 480×854 |
