Product Details:
|
| Panel Type: | A-Si TFT-LCD | Active Area: | 246×184.5 Mm |
|---|---|---|---|
| Outline: | 276×209×9.6 Mm | Frequency: | 60Hz |
| Contrast Ratio: | 800:1 (Typ.) | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

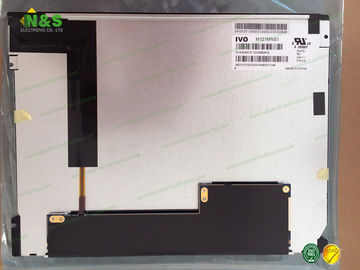

M121MNS1 R0 Normally White 12.1 inch, 800×600 Active Area 246×184.5 mm Surface Antiglare, Hard coating (3H)
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
M121MNS1 R0 Basic Information
| Panel Model | M121MNS1 R0 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | M121MNS1-R0 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
M121MNS1 R0 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 700g (Max) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 246×184.5 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 276×209 mm (H×V) |
| Outline Depth | 9.1±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M121MNS1 R0 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.280; Wy:0.301 |
| White Variation | 1.33 (Max.)(5 points) |
| Sunlight Readable | N |
