Product Details:
|
| Panel Size: | 12.5 Inch | Resolution: | 1366×768 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Contrast Ratio: | 500:1 (Typ.) |
| Frequency: | 60Hz | ||
| High Light: | industrial touch screen display,industrial lcd screen |
||

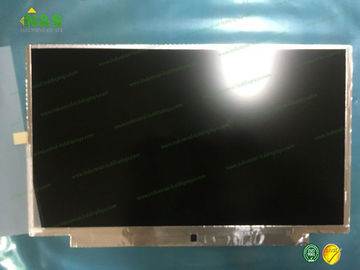

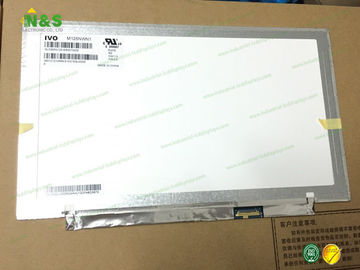

M125NWN1 R0 12.5 inch IVO LCD Panel Normally White with 276.615×155.52 mm Active Area,1366×768 resolution
M125NWN1 R0 Basic Information
| Panel Model | M125NWN1 R0 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,12.5 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
M125NWN1 R0 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 125 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0675×0.2025 mm (H×V) |
| Pixel Pitch | 0.2025×0.2025 mm (H×V) |
| Weight | 250g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 276.615×155.52 mm (H×V) |
| Outline Dimension | 290.5×181.4 mm (H×V) |
| Outline Depth | 3.0 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M125NWN1 R0 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.67 (Max.)(5/13 points) |
| Sunlight Readable | N |
