Product Details:
|
| Panel Brand: | IVO | Panel Model: | M140NWR2 R1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Outline: | 323.5×192×5.2 Mm |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

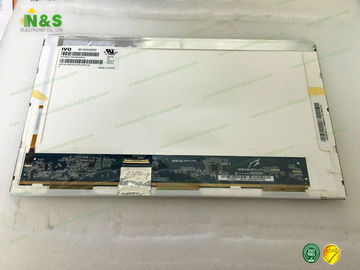

Normally Black M140NWR2 R1 resoluton 1366×768 Outline 323.5×192×5.2 mm Frequency 60Hz
M140NWR2 R1 Basic Information
| Panel Model | M140NWR2 R1 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,14.0 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Dynamic Backlight |
M140NWR2 R1 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 112 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0755×0.2265 mm (H×V) |
| Pixel Pitch | 0.2265×0.2265 mm (H×V) |
| Weight | 355g (Max.) |
| Surface | Glare (Haze 0%), Hard coating |
| Active Area | 309.399×173.952 mm (H×V) |
| Bezel Area | 312.40×176.95 mm (H×V) |
| Outline Dimension | 323.5×192 mm (H×V) |
| Outline Depth | 5.2 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M140NWR2 R1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.49 (Max.)(5/13 points) |
| Sunlight Readable | N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| C050SWZ9 R1 | IVO | 5.0" | 540×960 |
| C050SWY2-3 | IVO | 4.9" | 480×854 |
| C050SWY2-1 | IVO | 4.9" | 480×854 |
| C045SWY2-0 | IVO | 4.5" | 480×854 |
| C046SWN1-0 | IVO | 4.6" | 480×854 |
| C028SN21-1 | IVO | 2.8" | 240×320 |
| C020SN91 | IVO | 2.0" | 176×220 |
| C054SWZ5 | IVO | 5.4" | 540×960 |
