Product Details:
|
| Panel Type: | FSTN-LCD | Panel Size: | 5.4 Inch |
|---|---|---|---|
| Resolution: | 240×128 | Outline: | 170×105 Mm |
| Contrast Ratio: | 10:1 (Typ.) | Frequency: | 70Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||

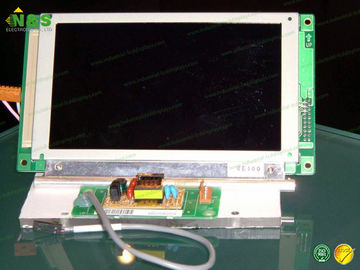

DMF-50773NF-FW 5.4 inch, 240×128 Active Area 119.97×63.97 mm Outline 170×105 mm Lamp Type 1 pcs CCFL Without Driver
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Packing & Delivery for our LCD Screen Panel Replacements:
DMF-50773NF-FW Basic Information
| Panel Model | DMF-50773NF-FW |
| Panel Brand | OPTREX |
| Descrition | FSTN-LCD ,5.4 inch, 240×128 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
DMF-50773NF-FW Mechanical Features
| Dot Resolution | 240×128 |
| Pixel Configuration | Rectangle |
| Pixel Density | 50 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.50×0.50 mm (H×V) |
| Pixel Pitch | 0.50×0.50 mm (H×V) |
| Weight | 250g (Max.) |
| Active Area | 119.97×63.97 mm (H×V) |
| Bezel Area | 126.0×70.0 mm (H×V) |
| Outline Dimension | 170×105 mm (H×V) |
| Outline Depth | 14.0 (Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
DMF-50773NF-FW Backlight System
| Lamp Position | Edge light type |
| Lamp Type | CCFL |
| Lamp Amount | 1 pcs |
| Lamp Shape | Straight |
| Lamp Life Time | 15K(Typ.) (Hours) |
| Lamp Voltage | 350V (Typ.) |
| Lamp Current | 5.0±1.0mA |
| Lamp Startup Voltage | 450V (Min.) |
| Interface Type | Connector |
| Lamp Driver Board | No |
