Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 65 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Active Area: | 1428.48×803.52 Mm |
| Outline: | 1450.9×832 Mm | Contrast Ratio: | 1300:1 (Typ.) |
| High Light: | lg display panel,lg lcd display |
||

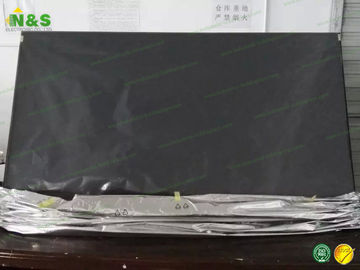

LD650EUF-FHB1 65 inch, 1920×1080 Active Area 1428.48×803.52 mm Outline 1450.9×832 mm Frequency 60Hz
LD650EUF-FHB1 Basic Information
| Panel Model | LD650EUF-FHB1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,65 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LD650EUF (FH)(B1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Integrated “Black” bezel |
LD650EUF-FHB1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 34 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.248×0.744 mm (H×V) |
| Pixel Pitch | 0.744×0.744 mm (H×V) |
| Weight | 22.3/23.0Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Active Area | 1428.48×803.52 mm (H×V) |
| Bezel Area | 1433.1×808.1 mm (H×V) |
| Outline Dimension | 1450.9×832 mm (H×V) |
| Outline Depth | 16.5 mm |
| Landscape or Portrait | Landscape / Portrait |
| Touch Panel | Without |
LD650EUF-FHB1 Optical Features
| Display Mode | S-IPS, Normally Black, Transmissive |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M/1.06B (8-bit / 8-bit + Dithering) |
| Color Gamut | 68% NTSC (CIE1931) |
| Response Time | 10 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.281; Wy:0.288 |
| White Variation | 1.54 (Max.)(9 points) |
| Sunlight Readable | N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
