Product Details:
|
| Panel Size: | 23.8 Inch | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Resolution: | 1920×1080 | Outline: | 535×313 Mm |
| Surface: | Antiglare | Frequency: | 60Hz |
| High Light: | lg display panel,lg lcd display |
||

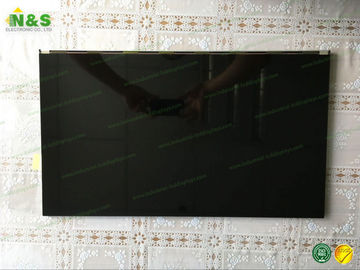

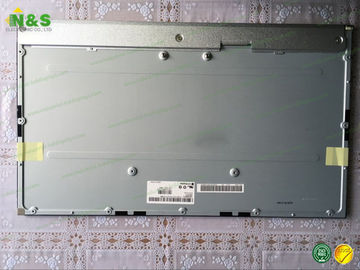

Normally Black LM238WF2-SSD1 23.8 inch 1920×1080 Outline 535×313 mm Active Area 527.04×296.46 mm
LM238WF2-SSD1 Basic Information
| Panel Model | LM238WF2-SSD1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,23.8 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LM238WF2 (SS)(D1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Borderless |
LM238WF2-SSD1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 92 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0915×0.2745 mm (H×V) |
| Pixel Pitch | 0.2745×0.2745 mm (H×V) |
| Weight | 2.2/2.31Kgs (Typ./Max.) |
| Surface | Antiglare |
| Active Area | 527.04×296.46 mm (H×V) |
| Outline Dimension | 535×313 mm (H×V) |
| Outline Depth | 12.5 (Typ.) mm |
| Holes & Brackets | Rear mounting poles (9-M3) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LM238WF2-SSD1 Optical Features
| Display Mode | AH-IPS, Normally Black, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
