Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Active Area: | 222.52×125.11 Mm |
| Contrast Ratio: | 800:1 (Typ.) | Frequency: | 60Hz |
| High Light: | lg lcd display,lg replacement screen |
||

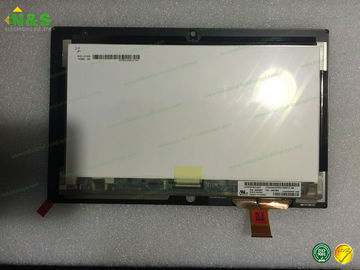

LP101WH4-SLA4 TFT LCD Module Normally Black 10.1 inch 1366×768 with 222.52×125.11 mm Active Area
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packing & Delivery for our LCD Screen Panel Replacements:
LP101WH4-SLA4 Basic Information
| Panel Model | LP101WH4-SLA4 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP101WH4 (SL)(A4) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LP101WH4-SLA4 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 155 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0543×0.1629 mm (H×V) |
| Pixel Pitch | 0.1629×0.1629 mm (H×V) |
| Active Area | 222.52×125.11 mm (H×V) |
| Landscape or Portrait | Landscape type |
LP101WH4-SLA4 Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.20/1.40 (Typ.)(5/13 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH430WV3-SH02 | LG Display | 4.3" | 480×800 |
| LP156WH6-TJA1 | LG Display | 15.6" | 1366×768 |
| LH400WV3-SH04 | LG Display | 4.0" | 480×800 |
| LH350H05-SH01 | LG Display | 3.5" | 320×480 |
| LH430WV1-SH01 | LG Display | 4.3" | 480×800 |
| LH320WV4-SD11 | LG Display | 3.2" | 480×854 |
| LH320WV4-SH01 | LG Display | 3.2" | 480×854 |
| LH350H02-FH02 | LG Display | 3.5" | 320×480 |
| LH350H02-FH01 | LG Display | 3.5" | 320×480 |
| LH350H01-FH01 | LG Display | 3.5" | 320×480 |
