Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Active Area: | 344.232×193.536 Mm |
| Outline: | 359.5×223.5×3.2 Mm | Frequency: | 60Hz |
| High Light: | lg display panel,lg replacement screen |
||

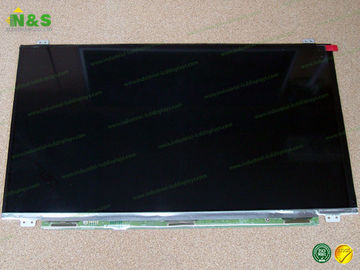

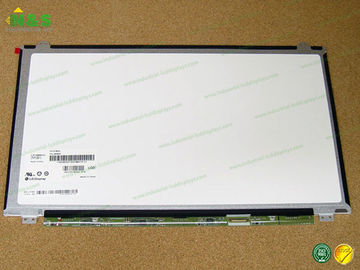

Normally White LP156WHU-TPB1 1366×768 resolution 15.6 inch TFT LCD Module Frequency 60Hz
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5. Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LP133WP1-TJAA | LG Display | 13.3" | 1440×900 |
| LH550WX1-SH01 | LG Display | 5.5" | 720×1280 |
| LM270WQ1-SDFJ | LG Display | 27.0" | 2560×1440 |
| LH550M01-SH01 | LG Display | 5.5" | 540×960 |
| LH550WF1-SH01 | LG Display | 5.5" | 1080×1920 |
| LD070WX5-SH01 | LG Display | 7.0" | 900×1440 |
| LH350WS1-SH01 | LG Display | 3.5" | 640×960 |
| LH400WV5-SH01 | LG Display | 4.0" | 480×800 |
| LD070WX4-SH01 | LG Display | 7.0" | 800×1280 |
| LH370WV3-SH01 | LG Display | 3.7" | 480×800 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LP156WHU-TPB1 Basic Information
| Panel Model | LP156WHU-TPB1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP156WHU (TP)(B1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Lenovo RFU: 04X0439 |
LP156WHU-TPB1 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 370g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 344.232×193.536 mm (H×V) |
| Bezel Area | 347.5×196.8 mm (H×V) |
| Outline Dimension | 359.5×223.5 mm (H×V) |
| Outline Depth | 3.2 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LP156WHU-TPB1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.40/1.60 (Typ./Max.)(13 points) |
| Sunlight Readable | N |
