Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Outline: | 359.5×223.8×3.2 Mm |
| Surface: | Antiglare | Frequency: | 60Hz |
| High Light: | lg lcd display,lg replacement screen |
||

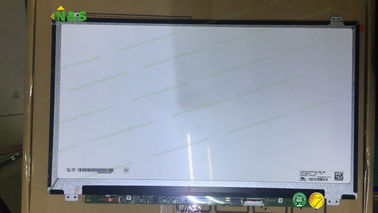

15.6 inch LP156WF6-SPM1 TFT LCD Module ,Normally Black Surface Antiglare, Outline 359.5×223.8×3.2 mm
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC650EQK-FGK5 | LG Display | 65" | 3840×2160 |
| LB164WH1-SJA1 | LG Display | 16.4" | 1366×238 |
| LH550QH1-SH01 | LG Display | 5.5" | 1440×2560 |
| LC420EGY-SGM1 | LG Display | 42" | 3840×2160 |
| LC430DUY-SHA1 | LG Display | 43" | 1920×1080 |
| LD079X02-SHA1 | LG Display | 7.9" | 768×1024 |
| LH550WF2-SH01 | LG Display | 5.5" | 1080×1920 |
| LC490EGY-SHM1 | LG Display | 49" | 3840×2160 |
| LC550DUJ-SGE3 | LG Display | 55" | 1920×1080 |
| LC490DUJ-SGE3 | LG Display | 49" | 1920×1080 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LP156WF6-SPM1 Basic Information
| Panel Model | LP156WF6-SPM1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP156WF6 (SP)(M1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LP156WF6-SPM1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 340/350g(Typ./Max.) |
| Surface | Antiglare |
| Active Area | 344.16×193.59 mm (H×V) |
| Bezel Area | 347.45×196.8 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.2 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LP156WF6-SPM1 Optical Features
| Display Mode | AH-IPS, Normally Black, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.40/1.60 (Max.)(5/13 points) |
| Sunlight Readable | N |
