Product Details:
|
| Panel Size: | 15.6 Inch | Resolution: | 1920×1080 |
|---|---|---|---|
| Aspect Ratio: | A-Si TFT-LCD | Active Area: | 344.16×193.59 Mm |
| Contrast Ratio: | 800:1 (Typ.) | Frequency: | 60Hz |
| High Light: | lg display panel,lg replacement screen |
||

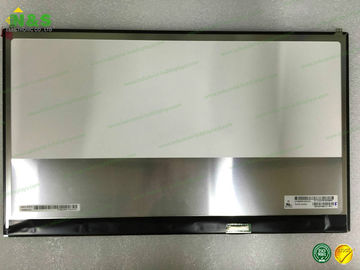

Normally Black LP156WF8-SPA1 15.6 inch 1920×1080 TFT-LCD Module Active Area 344.16×193.59 mm
LP156WF8-SPA1 Basic Information
| Panel Model | LP156WF8-SPA1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP156WF6 (SP)(A1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LP156WF8-SPA1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 225g (Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 344.16×193.59 mm (H×V) |
| Bezel Area | 347.26×196.68 mm (H×V) |
| Outline Dimension | 349.96×206.45 mm (H×V) |
| Outline Depth | 2.3/4.6 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (4 pcs) on up slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LP156WF8-SPA1 Optical Features
| Display Mode | AH-IPS, Normally Black, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 61% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.40/1.60 (Max.)(5/13 points) |
| Sunlight Readable | N |
LP156WF8-SPA1 Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| Total Power Consumption | 5.35W (Typ.) |
LP156WF8-SPA1 Backlight System
| Lamp Position | Edge light type |
| Lamp Type | WLED |
| Lamp Life Time | 12K(Min.) (Hours) |
| Interface Type | Included in panel signal interface |
| Lamp Driver Board | 4.5/4.7W (Typ./Max.) |
| Panel Model | Brand | Size | Resolution |
| LP133WP1-TJAA | LG Display | 13.3" | 1440×900 |
| LH550WX1-SH01 | LG Display | 5.5" | 720×1280 |
| LM270WQ1-SDFJ | LG Display | 27.0" | 2560×1440 |
| LH550M01-SH01 | LG Display | 5.5" | 540×960 |
| LH550WF1-SH01 | LG Display | 5.5" | 1080×1920 |
| LD070WX5-SH01 | LG Display | 7.0" | 900×1440 |
| LH350WS1-SH01 | LG Display | 3.5" | 640×960 |
| LH400WV5-SH01 | LG Display | 4.0" | 480×800 |
| LD070WX4-SH01 | LG Display | 7.0" | 800×1280 |
| LH370WV3-SH01 | LG Display | 3.7" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information
