Product Details:
|
| Panel Type: | A-Si TFT-LCD | Outline: | 168.8×93.5 Mm |
|---|---|---|---|
| Surface: | Antiglare | Contrast Ratio: | 400:1 (Typ.) |
| Signal Interface: | TTL (1 Ch, 6-bit) , 40 Pins | Input Voltage: | 5.0V (Typ.) |
| High Light: | lg display panel,lg replacement screen |
||

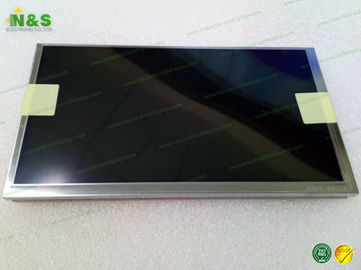

Normally White LB070WQ5-TD01 TFT LCD Module Active Area 155.952×82.8 mm Input Voltage 5.0V (Typ.)
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
LB070WQ5-TD01 Basic Information
| Panel Model | LB070WQ5-TD01 |
| Panel Brand | LG. LCD |
| Descrition | a-Si TFT-LCD ,7.0 inch, 480×240 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LB070WQ5 (TD)(01) |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 85 °C |
LB070WQ5-TD01 Mechanical Features
| Dot Resolution | 480(RGB)×240 (WQVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 77 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1083×0.3450 mm (H×V) |
| Pixel Pitch | 0.3169×0.3450 mm (H×V) |
| Weight | 210/220g (Typ./Max.) |
| Surface | Antiglare |
| Active Area | 155.952×82.8 mm (H×V) |
| Bezel Area | 158.4×85.1 mm (H×V) |
| Outline Dimension | 168.8×93.5 mm (H×V) |
| Outline Depth | 7 mm |
| Holes & Brackets | Rear mount holes (4-M2) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LD070WX7-SH01 | LG Display | 7.0" | 800×1280 |
| LD070WS2-SH02 | LG Display | 7.0" | 1024×600 |
| LA070WV1-TH01 | LG Display | 7.0" | 800×480 |
| LH550WX1-SH02 | LG Display | 5.5" | 720×1280 |
| LD079X01-SHC4 | LG Display | 7.9" | 768×1024 |
| LH470WX3-SH01 | LG Display | 4.7" | 720×1280 |
| LC550EUJ-FFK1 | LG Display | 55" | 1920×1080 |
| LH520WF1-SH01 | LG Display | 5.2" | 1080×1920 |
| LC490DUJ-SGK1 | LG Display | 49" | 1920×1080 |
| LC490DUJ-SGE1 | LG Display | 49" | 1920×1080 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
