Normally Black LM215WF9-SSA1 TFT LCD Module 21.5 inch high resolution 1920×1080 Surface Antiglare (Haze 25%)

Normally Black LM215WF9-SSA1 TFT LCD Module 21.5 inch high resolution 1920×1080 Surface	Antiglare (Haze 25%)
Normally Black LM215WF9-SSA1 TFT LCD Module 21.5 inch high resolution 1920×1080 Surface	Antiglare (Haze 25%) Normally Black LM215WF9-SSA1 TFT LCD Module 21.5 inch high resolution 1920×1080 Surface	Antiglare (Haze 25%)

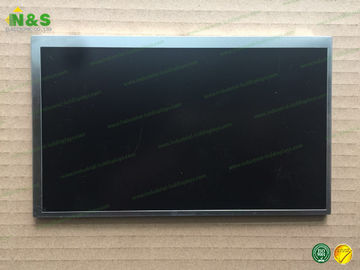

Large Image :  Normally Black LM215WF9-SSA1 TFT LCD Module 21.5 inch high resolution 1920×1080 Surface Antiglare (Haze 25%)

Product Details:
Place of Origin: KOREA
Brand Name: LG Display
Certification: ISO9001
Model Number: LM215WF9-SSA1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

Normally Black LM215WF9-SSA1 TFT LCD Module 21.5 inch high resolution 1920×1080 Surface Antiglare (Haze 25%)

Description
Panel Type: A-Si TFT-LCD Panel Size: 21.5 Inch
Resolution: 1920×1080 Active Area: 476.064×267.786 Mm
Outline: 484.5×284.4×12.7 Mm Contrast Ratio: 1000:1 (Typ.)
High Light:

lg display panel

,

lg lcd display

Normally Black LM215WF9-SSA1 TFT LCD Module 21.5 inch high resolution 1920×1080 Surface Antiglare (Haze 25%)



We Can Do for You:

1) One-to-one service with efficient & professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.



What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.



LM215WF9-SSA1 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 102 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.08625×0.25875 mm (H×V)
Pixel Pitch 0.24795×0.24795 mm (H×V)
Weight 1.59/1.67Kgs (Typ./Max.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 476.064×267.786 mm (H×V)
Outline Dimension 484.5×284.4 mm (H×V)
Outline Depth 8.55/12.7 (Typ./Max.) mm
Holes & Brackets Rear mounting holes (9-M3)
Touch Panel Without


LM215WF9-SSA1 Basic Information

Panel Model LM215WF9-SSA1
Panel Brand LG Display
Descrition a-Si TFT-LCD ,21.5 inch, 1920×1080
Panel Type a-Si TFT-LCD
Model Alias LM215WF9 (SS)(A1)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks Borderless


LM215WF9-SSA1 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 11.2W (Typ.)


Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LC420DUJ-SGK1 LG Display 42" 1920×1080
LD070WX6-SH01 LG Display 7.0" 800×1280
LC550EQJ-SGK1 LG Display 55" 3840×2160
LC420DUJ-SGE1 LG Display 42" 1920×1080
LH500M01-SH01 LG Display 5.0" 540×960
LH400WV6-SH01 LG Display 4.0" 480×800
LH470WX1-SH01 LG Display 4.7" 720×1280
LP079X01-SHA1 LG Display 7.9" 768×1024
LH380WV1-SH03 LG Display 3.8" 480×800
LH430WV3-SH03 LG Display 4.3" 480×800
