Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 9.7 Inch |
|---|---|---|---|
| Resolution: | 2048×1536 | Active Area: | 196.608×147.456 Mm |
| Contrast Ratio: | 800:1 (Typ.) | Display Colors: | 16.7M (8-bit) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

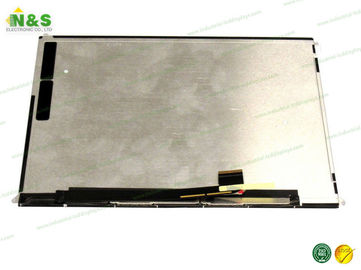

High resolution 2048×1536 9.7 inch LP097QX1-SPA1 TFT LCD Module Normally Black, Frequency 60Hz
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
LP097QX1-SPA1 Basic Information
| Panel Model | LP097QX1-SPA1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,9.7 inch, 2048×1536 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP097QX1 (SP)(A1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | for iPad 3 |
LP097QX1-SPA1 Mechanical Features
| Dot Resolution | 2048(RGB)×1536 (QXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 264 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.032×0.096 mm (H×V) |
| Pixel Pitch | 0.096×0.096 mm (H×V) |
| Weight | 134g (Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Active Area | 196.608×147.456 mm (H×V) |
| Outline Dimension | 208.88×167.12 mm (H×V) |
| Outline Depth | 2.68/5.17 (Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LP097QX1-SPA1 Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Brightness | 440 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 16 (Typ.)(G to G) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.306; Wy:0.320 |
| White Variation | 1.25/1.43 (Typ./Max.)(160 points) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC420DUK-SGK2 | LG Display | 42" | 1920×1080 |
| LC490EGY-SGM1 | LG Display | 49" | 3840×2160 |
| LA070WV1-TZ01 | LG Display | 7.0" | 800×480 |
| LC650DUJ-SGE1 | LG Display | 65" | 1920×1080 |
| LC600DUJ-SGE1 | LG Display | 60" | 1920×1080 |
| LC600DUK-SEE1 | LG Display | 60" | 1920×1080 |
| LH350WS1-SH02 | LG Display | 3.5" | 640×960 |
| LC550EQJ-SGE2 | LG Display | 55" | 3840×2160 |
| LC550EGY-SGM1 | LG Display | 55" | 3840×2160 |
| LH600WF1-SH01 | LG Display | 6.0" | 1080×1920 |
