Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 800×600 | Display Mode: | TN, Normally White, Transmissive |
| Surface: | Antiglare, Hard Coating (2H) | Display Colors: | 262K (6-bit) |
| High Light: | lg lcd display,lg replacement screen |
||

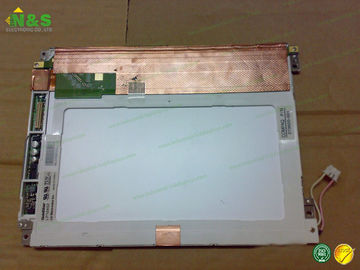

Normally White 10.4 inch LP104S2 TFT LCD Module 800×600 TN, Normally White, Transmissive Contrast Ratio 100:1 (Typ.)
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
LP104S2 Basic Information
| Panel Model | LP104S2 |
| Panel Brand | LG Electronics |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LP104S2 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.2×162.4 mm (H×V) |
| Outline Dimension | 246.5×179.4 mm (H×V) |
| Outline Depth | 8.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-3.4×4.4) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LP104S2 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 70 cd/m² (Typ.) |
| Contrast Ratio | 100 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30/50 (Max.)(Tr/Td) |
| Viewing Angle | 40/40/10/30 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.320; Wy:0.320 |
| White Variation | 1.20/1.35 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC470DUT-SEF2 | LG Display | 47" | 1920×1080 |
| LC550EGY-SHM1 | LG Display | 55" | 3840×2160 |
| LC550EQK-FGK3 | LG Display | 55" | 3840×2160 |
| LC420DUJ-SGE3 | LG Display | 42" | 1920×1080 |
| LH450WX3-SH01 | LG Display | 4.5" | 720×1280 |
| LC490EQJ-SGE2 | LG Display | 49" | 3840×2160 |
| LH470WX3-SH02 | LG Display | 4.7" | 720×1280 |
| LH600WX1-SH01 | LG Display | 6.0" | 720×1280 |
| LC490EQJ-SGK1 | LG Display | 49" | 3840×2160 |
| LC420EQJ-SGE2 | LG Display | 42" | 3840×2160 |
