Product Details:
|
| Panel Model: | AA121XH01 | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Resolution: | 1024×768 | Outline: | 280×210×12.5 Mm |
| Surface: | Antiglare, Hard Coating (3H) | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||

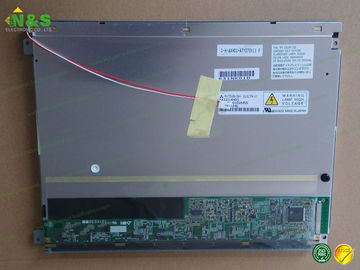

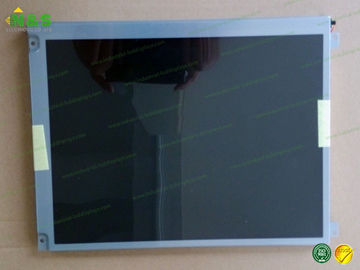

Normally White AA121XH01 12.1 inch, resolution 1024×768 Lamp Type 2 pcs CCFL Without Driver
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
AA121XH01 Basic Information
| Panel Model | AA121XH01 |
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | T-51756D121J-FW-A-AA |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
AA121XH01 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 720g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 280×210 mm (H×V) |
| Outline Depth | 12.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AA121XH01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 550 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.322; Wy:0.338 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
