Product Details:
|
| Panel Size: | 12.1 Inch | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Resolution: | 640×480 | Surface: | Clear |
| Contrast Ratio: | 150:1 (Typ.) | Frequency: | 60Hz |
| High Light: | nec lcd touch screen,nec lcd screen |
||

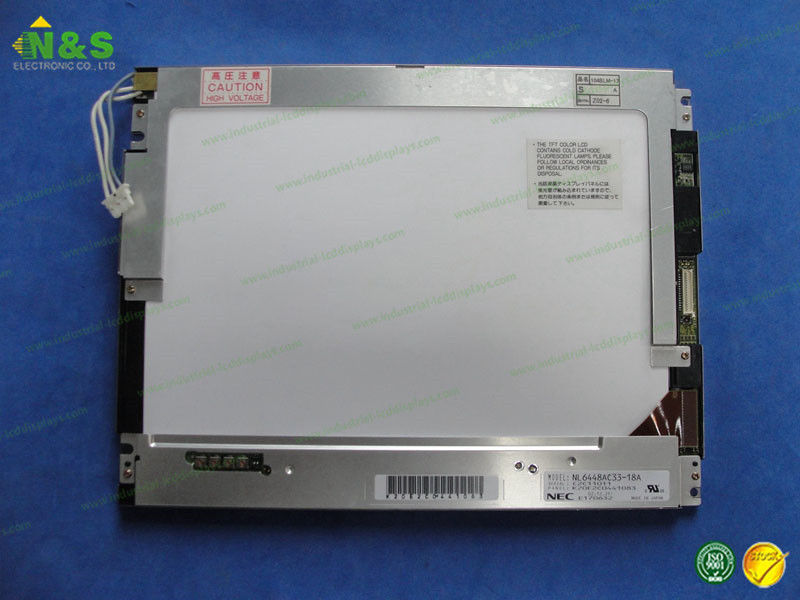

NL6448AC33-18A 10.4inch 640×480 TFT-LCD Module Resolution 640(RGB)×480 (VGA) TN, Normally White, Transmissive
NL6448AC33-18A Basic Information
| Panel Model | NL6448AC33-18A |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
NL6448AC33-18A Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 470g (Typ.) |
| Surface | Clear |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dimension | 243×185.1 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
