Product Details:
|
| Panel Size: | 8.4 Inch | Active Area: | 170.88×128.16 Mm |
|---|---|---|---|
| Resolution: | 640×480 | Panel Type: | A-Si TFT-LCD |
| Outline: | 200×152×12.7 Mm | Frequency: | 60Hz |
| High Light: | nec tft lcd,nec lcd screen |
||

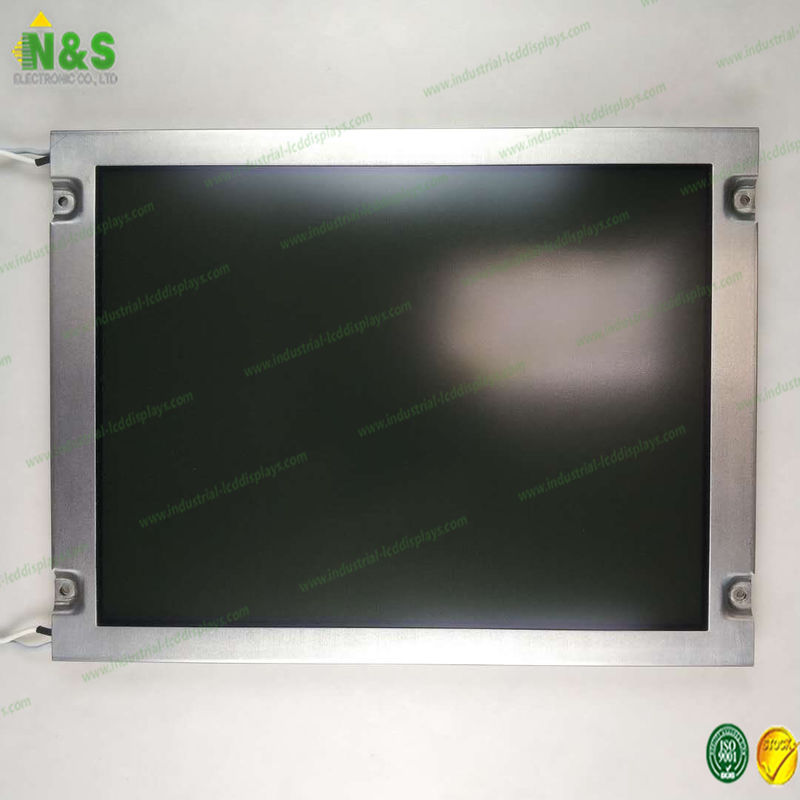

NL6448BC26-01 Basic Information
| Panel Model | NL6448BC26-01 |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,8.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
NL6448BC26-01 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 95 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.089×0.267 mm (H×V) |
| Pixel Pitch | 0.267×0.267 mm (H×V) |
| Weight | 375/400g (Typ./Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 170.88×128.16 mm (H×V) |
| Bezel Area | 174.0×131.4 mm (H×V) |
| Outline Dimension | 200×152 mm (H×V) |
| Outline Depth | 12.0±0.7 mm |
| Holes & Brackets | Face mounting holes (4-Ф2.8) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
| F055A15-6T1 | Innolux | 5.5" | 720×1280 |
| F050A19-601 | Innolux | 5.5" | 720×1280 |
