Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 640×480 | Active Area: | 211.2×158.4 Mm |
| Outline: | 243×185.1×11 Mm | Surface: | Clear, Antireflection |
| High Light: | industrial touch screen display,industrial lcd screen |
||

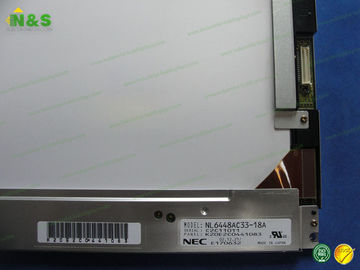

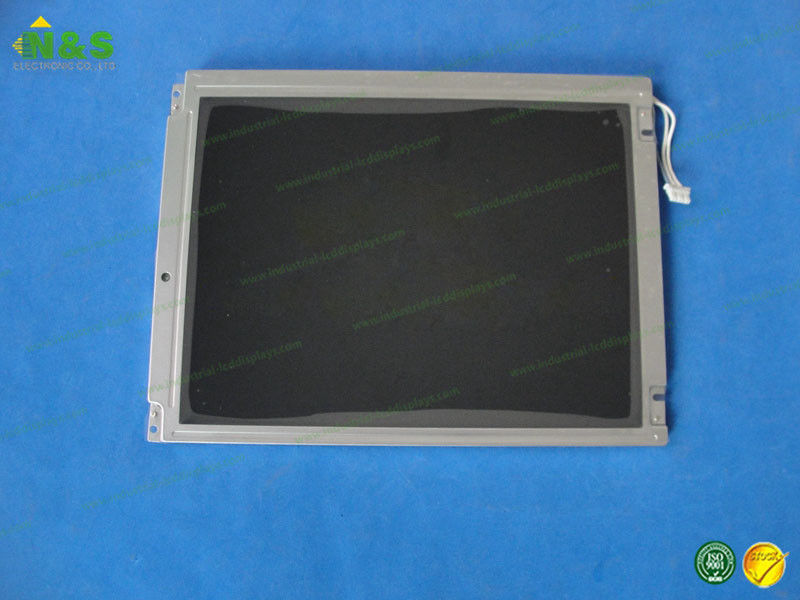

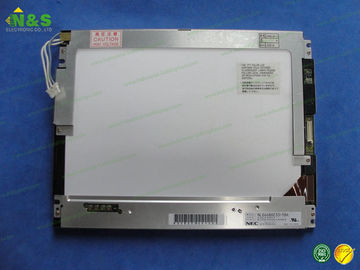

10.4 Inch NL6448AC33-18 TFT LCD Module , tft lcd display module 211.2×158.4 mm Surface Clear, Antireflection
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
NL6448AC33-18 Basic Information
| Panel Model | NL6448AC33-18 |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
NL6448AC33-18 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 470g (Typ.) |
| Surface | Clear, Antireflection |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dimension | 243×185.1 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150QB01 | Mitsubishi | 15.0" | 1280×960 |
| AA150QA02 | Mitsubishi | 15.0" | 1280×960 |
| AA150QA01 | Mitsubishi | 15.0" | 1280×960 |
| AA142XE02 | Mitsubishi | 14.2" | 1024×768 |
| AA142XE01 | Mitsubishi | 14.2" | 1024×768 |
| AA142XD11 | Mitsubishi | 14.2" | 1024×768 |
| AA142XC11 | Mitsubishi | 14.2" | 1024×768 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
