Product Details:
|
| Model: | NL3224BC35-20R | Diagonal Size: | 5.5 Inch |
|---|---|---|---|
| Type: | A-Si TFT-LCD | Pixel Format: | 320×240 |
| Active Area: | 111.36×83.52 Mm | Outline: | 134×104.5 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||

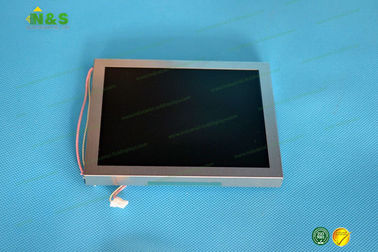

NL3224BC35-20R new and original 5.5 inch Resolution 320×240 TFT LCD MODULE Normally White
Our Advantages
NL3224BC35-20R Basic Information
| Panel Model | NL3224BC35-20R |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,5.5 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
NL3224BC35-20R Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 72 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.116×0.348 mm (H×V) |
| Pixel Pitch | 0.348×0.348 mm (H×V) |
| Active Area | 111.36×83.52 mm (H×V) |
| Bezel Area | 116.4×88.5 mm (H×V) |
| Outline Dimension | 134×104.5 mm (H×V) |
| Outline Depth | 12.5±0.5 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
| HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |
