Product Details:
|
| Panel Type: | LTPS TFT-LCD | Resolution: | 1024(RGB)×768 (XGA) |
|---|---|---|---|
| Aspect Ratio: | 4:3 (H:V) | Dot Pitch: | 0.080×0.240 Mm (H×V) |
| Pixel Pitch: | 0.240×0.240 Mm (H×V) | Surface: | Antiglare, Hard Coating (2H) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

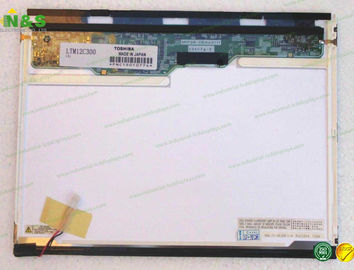

TOSHIBA LTM12C300 12.1 inch, 1024×768 lcd panel screen Normally White Surface Antiglare, Hard coating (2H)
LTM12C300 Basic Information
| Panel Model | LTM12C300 |
| Panel Brand | TOSHIBA |
| Descrition | LTPS TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LTM12C300 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 250.4×188.9 mm (H×V) |
| Outline Dimension | 261.6×202.8 mm (H×V) |
| Outline Depth | 9.9±0.3 mm |
| Holes & Brackets | Side mounting holes (4 pcs) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| N101JSA-P11 | Innolux | 10.1" | 1200×1920 |
| LC420DUJ-FFE2 | LG Display | 42" | 1920×1080 |
| TV070WSU-N10 | BOE | 7.0" | 1024×600 |
| HSD040I3N1-B00-0299 | HannStar | 4.0" | 320×240 |
| TM045YYHP08 | Tianma | 4.5" | 480×854 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| CLAF050WH41 | CPT | 5.0" | 720×1280 |
| LH470WX3-SH05 | LG Display | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
