Product Details:
|
| Panel Model: | TLX5152S-C3M | Panel Type: | LTPS TFT-LCD |
|---|---|---|---|
| Resolution: | 800×600 | Panel Size: | 8.4 Inch |
| Active Area: | 170.4×127.8 Mm | Outline: | 201.4×140.3 Mm |
| High Light: | industrial touch screen display,industrial lcd panel |
||

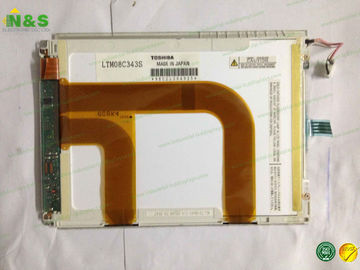

Normally White TOSHIBA LTM08C343S 8.4 inch LTPS TFT-LCD Panel Screen Outline 201.4×140.3 mm Frequency 60Hz
LTM08C343S Basic Information
| Panel Model | LTM08C343S |
| Panel Brand | TOSHIBA |
| Descrition | LTPS TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LTM08C343S Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 190g (Typ.) |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 173.4×130.8 mm (H×V) |
| Outline Dimension | 201.4×140.3 mm (H×V) |
| Outline Depth | 5.8 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ2.4) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTM08C343S Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 70 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Sunlight Readable | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Packing & Delivery for our LCD Screen Panel Replacements:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C028SN21-1 | IVO | 2.8" | 240×320 |
| C020SN91 | IVO | 2.0" | 176×220 |
| LD550DPY-SHA1 | LG Display | 55" | 1920×1080 |
| LSC750HJ01-W | Samsung | 75" | 1920×1080 |
| LSC750FF01-W | Samsung | 75" | 3840×2160 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LSC320HF02-W | Samsung | 31.5" | 1920×1080 |
| LSC400HM16-W | Samsung | 40" | 1920×1080 |
| LC420EQJ-SGK1 | LG Display | 42" | 3840×2160 |
