Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 640×480 | Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 150:1 (Typ.) | Frequency: | 60Hz |
| High Light: | nec lcd touch screen,nec tft lcd |
||

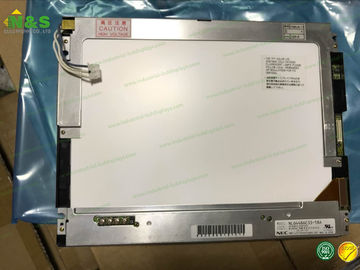

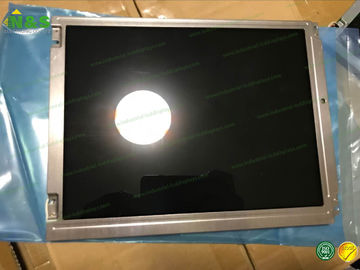

Normally White NL6448AC33-18A NEC 10.4 inch LCD Display Panel 640×480 Resolution Active Area 211.2×158.4 mm
NL6448AC33-18A Information
| Panel Model | NL6448AC33-18A |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 243×185.1×11 mm |
| Surface | Clear |
| Contrast Ratio | 150:1 (Typ.) |
| Display Colors | 262K (6-bit) , CIE1931 56% |
| Response Time | 40 (Max.)(Tr) |
| Viewing Angle | 45/45/30/20 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcs CCFL Embedded (Inverter) |
| Signal Interface | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
