Product Details:
|
| Panel Brand: | Mitsubishi | Panel Model: | AA065VE11ADA11 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 132.48×99.36 Mm |
| Outline: | 170.2×132.6×15.3 Mm | Surface: | Clear |
| High Light: | tft lcd panel,tft lcd display module |
||

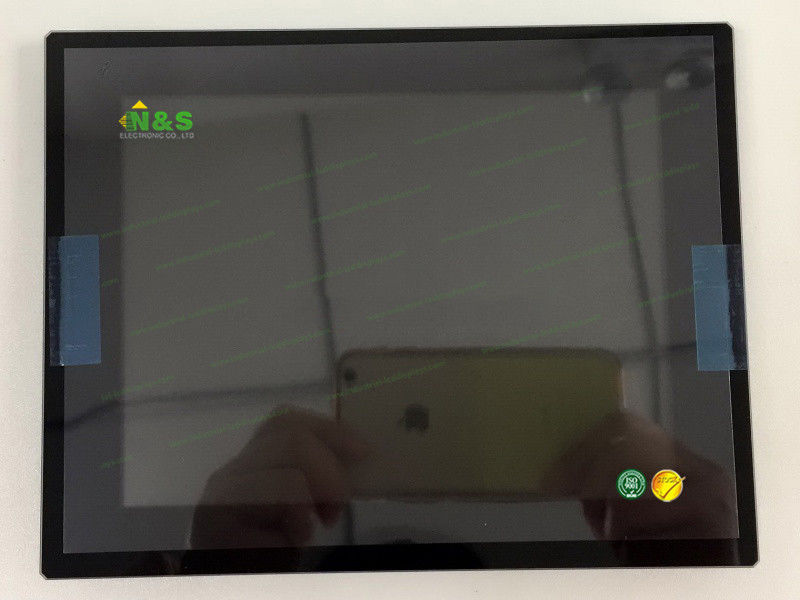

Normally White AA065VE11ADA11 Mitsubishi LCD Panel 6.5 inch for 60Hz
AA065VE11ADA11 Mitsubishi LCD Panel Detail
| Panel Model | AA065VE11ADA11 |
|---|---|
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,6.5 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 132.48×99.36 mm |
| Outline | 170.2×132.6×15.3 mm |
| Surface | Clear |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 8-bit) , CIE1931 40% |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 strings WLED Without Driver |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
| Panel Model | AA065VE11ADA11 |
|---|---|
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,6.5 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | NCM |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
AA065VE11ADA11 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 122 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.069×0.207 mm (H×V) |
| Pixel Pitch | 0.207×0.207 mm (H×V) |
| Surface | Clear |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084SD11-CA-01 | Mitsubishi | 8.4" | 800×600 |
| AA065VE11-DA-01 | Mitsubishi | 6.5" | 640×480 |
| AA084VC08 | Mitsubishi | 8.4" | 640×480 |
| AT070MJ01 | Mitsubishi | 7.0" | 800×480 |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
