LTA070B792F TOSHIBA LCD Panel 7.0 inch with 152.4×91.44 mm

LTA070B792F  TOSHIBA  LCD Panel  	7.0 inch    with  	152.4×91.44 mm
LTA070B792F  TOSHIBA  LCD Panel  	7.0 inch    with  	152.4×91.44 mm

Large Image :  LTA070B792F TOSHIBA LCD Panel 7.0 inch with 152.4×91.44 mm

Product Details:
Place of Origin: korea
Brand Name: TOSHIBA
Certification: ISO9001
Model Number: LTA070B792F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

LTA070B792F TOSHIBA LCD Panel 7.0 inch with 152.4×91.44 mm

Description
Panel Brand: TOSHIBA Panel Model: LTA070B792F
Panel Type: A-Si TFT-LCD , LCM Panel Size: 7.0 Inch
Resolution: 800(RGB)×480 , WVGA Display Mode: TN, Normally White, Transmissive
High Light:

tft lcd panel

,

tft lcd display module

LTA070B792F TOSHIBA LCD Panel 7.0 inch with 152.4×91.44 mm



LTA070B792F Detail

Panel Brand : Toshiba Mobile Display
Panel Model : LTA070B792F
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 152.4×91.44 mm
Outline : 169.8×108×10 mm
Surface : Antiglare
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 150:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 20/36 (Typ.)(Tr/Td)
Viewing Angle : 80/80/45/80 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : CMOS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LTD121LA7SG (Z) TOSHIBA 12.1" 1024×768
LTD154LZ1SG TOSHIBA 15.4" 1920×1200
LTD141LA1SG TOSHIBA 14.1" 1024×768
LTD121EA43G TOSHIBA 12.1" 1024×768
LTH15C503-A TOSHIBA 15.0" 1024×768
LTM024D161 TOSHIBA 2.4" 240×320
LTM030DH60 TOSHIBA 3.0" 240×427
LTD154LZ1SG (Z) TOSHIBA 15.4" 1920×1200
LTD154EZ0HG TOSHIBA 15.4" 1920×1200
LTA140C06HF TOSHIBA 14.0" 640×480
LTM06C381 TOSHIBA 5.8" 800×480

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



Panel Size : 7.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 133 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0635×0.1905 mm (H×V)
Pixel Pitch : 0.1905×0.1905 mm (H×V)
Weight : 225±20g
Surface : Antiglare
Active Area : 152.4×91.44 mm (H×V)
Bezel Area : 160.1×97.1 mm (H×V)
Outline Dimension : 169.8×108 mm (H×V)
Outline Depth : 9.5±0.5 mm
Holes & Brackets : Rear mounting holes (6-M2)
Landscape or Portrait : Landscape type
Touch Panel : Without



Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.



The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

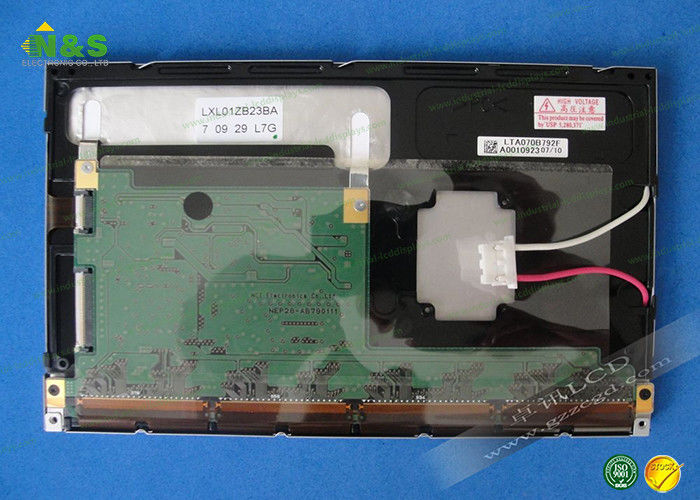

LTA070B792F Picture
