Product Details:
|
| Panel Brand: | TIANMA | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Active Area: | 304.128×228.096 Mm | Outline: | 325×253.5×12.1 Mm |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | black and white lcd display,lcd panel screen |
||

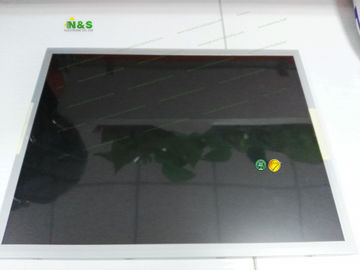

Normally White TM150TDSG71 Tianma 15.0 inch 304.128×228.096 mm Active Area for 60Hz LCD display panel
TM150TDSG71 Information
| Panel Model | TM150TDSG71 |
|---|---|
| Panel Brand | TIANMA |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 325×253.5×12.1 mm |
| Surface | Antiglare |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 62% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED Embedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
