TM121SDS01 12.1" 800×600 Antiglare Tianma LCD Displays

TM121SDS01 12.1" 800×600 Antiglare Tianma LCD Displays
TM121SDS01 12.1" 800×600 Antiglare Tianma LCD Displays

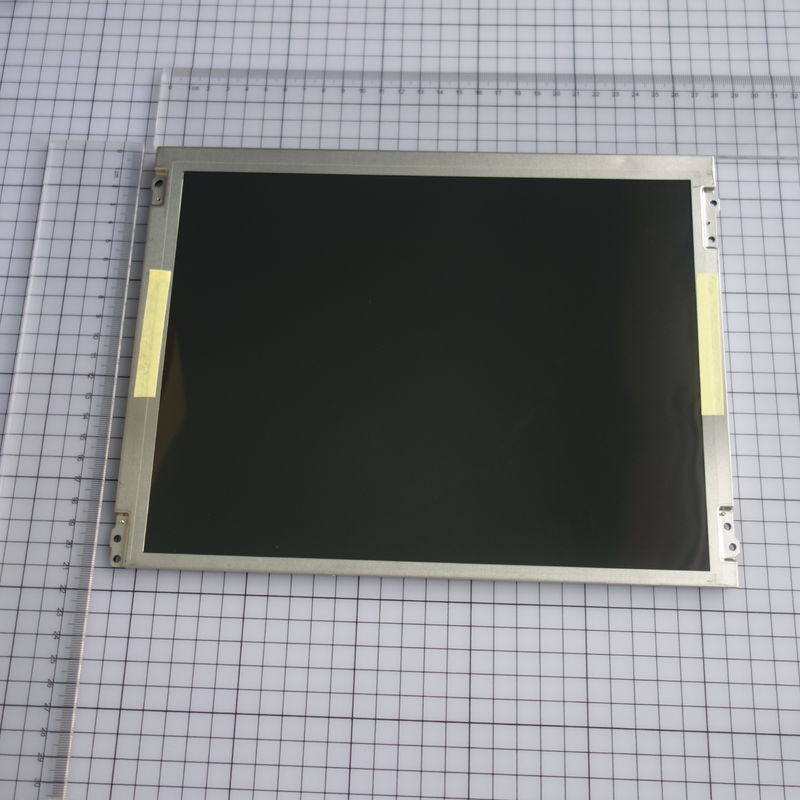

Large Image :  TM121SDS01 12.1" 800×600 Antiglare Tianma LCD Displays

Product Details:
Place of Origin: Korea
Brand Name: Tianma
Model Number: TM121SDS01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

TM121SDS01 12.1" 800×600 Antiglare Tianma LCD Displays

Description
Brightness: 450 Cd/m² (Typ.) Contrast Ratio: 700:1 (Typ.) (TM)
Operating Temp.: -20 ~ 70 °C Storage Temp.: -30 ~ 80 °C
Signal Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector Lamp Type: WLED , 50K Hours , With LED Driver
High Light:

Antiglare Tianma LCD Displays

,

TM121SDS01

,

12.1 inch Tianma LCD Displays

TM121SDS01 12.1" 800×600 Antiglare Tianma LCD Displays



Description of Tianma LCD Panel

Now have 5 datasheets of TM121SDS01 released by Tianma Microelectronics Co., Ltd. (hereafter called TIANMA). According to datasheet with version of Final Ver1.6 which was released out on 1 8 2013, TM121SDS01 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.



TIANMA TM121SDS01 Optical Details

Basic Detail :
Luminance
450 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
10/25 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/65/75 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./Max.)(9 points) TM121SDS01 12.1" 800×600 Antiglare Tianma LCD Displays 0
1931 Color Gamlt :
NTSC Ratio
46%
sRGB
65% coverage
Adobe RGB
49% coverage
DCI-P3
48% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM121SDS01 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×600, SVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.1025×0.3075 mm
Pixel Pitch(W×H)
0.3075×0.3075 mm [82PPI]
Physical Size :
Active Viewing
246(W)×184.5(H) mm
Overall Dim.
279(W)×209(H) mm
Bezel Opening
249.05(W)×188.3(H) mm
Overall Depth
9.0 (Typ.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Face mounting holes (7 pcs) on left, right bezel
Other Detail :
Mass
TBD
Surface
Antiglare



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information



TM240160XCFWGRA Tianma 2.2"
TM128128F6CCWGWC1 Tianma 1.44"
TM12864G3CCWGWA-1 Tianma 2.4"
TM050XYSP02 Tianma 5.0"
TM050JYHN11-00 Tianma 5.0"
TM055JYSP08 Tianma 5.5"
TM040XYHP01 Tianma 4.0"
TM055JYSP03 Tianma 5.5"
TM055JYHP03 Tianma 5.5"
TM055JYHP01 Tianma 5.5"
TM046XYHP01 Tianma 4.7"



Application Of Tianma LCD Panel TM121SDS01

1. Automotive Display

2. Tablet PC

3. Medical Display

4. Industrial Display

5. Self-servive Terminals Display





Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2. Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.





Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.
