Product Details:
|
| Panel Brand: | TIANMA | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Active Area: | 245.76×184.32 Mm | Contrast Ratio: | 700:1 (Typ.) |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | black and white lcd display,lcd panel screen |
||

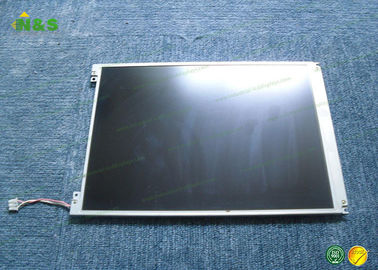

TM121TDSG02 Information
| Panel Model | TM121TDSG02 |
|---|---|
| Panel Brand | TIANMA |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 245.76×184.32 mm |
| Outline | 279×209×9.1 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 55% |
| Response Time | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED Embedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
<
TM121TDSG02 Basic Information
| Panel Model | TM121TDSG02 |
|---|---|
| Panel Brand | TIANMA |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |
| TM055JYSP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP01 | Tianma | 5.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
