Product Details:
|
| Panel Brand: | TIANMA | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Active Area: | 211.2×158.4 Mm | Outline: | 236×176.9×5.9 Mm |
| Surface: | Antiglare, Hard Coating (3H) | Frequency: | 60Hz |
| High Light: | black and white lcd display,lcd display white screen |
||

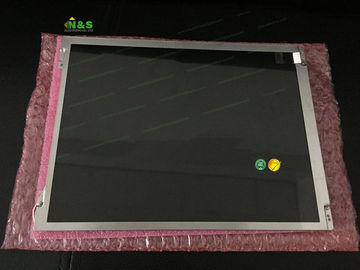

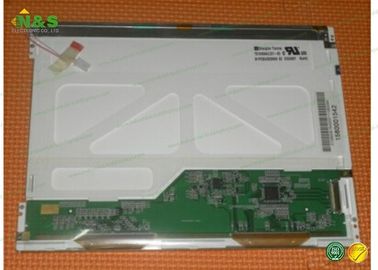

Normally White TM104SDH01 TIANMA 10.4 inch 211.2×158.4 mm Active Area LCD display for 60Hz
TM104SDH01 Products Information:
| Panel Model | TM104SDH01 |
|---|---|
| Panel Brand | TIANMA |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 236×176.9×5.9 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 262K (6-bit) , CIE1931 50% |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S6P WLED Without Driver |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |
TM104SDH01 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 288g |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM050XYS01 | Tianma | 5.0" | 272×480 |
| TM035PYS01 | Tianma | 3.5" | 320×480 |
| TM032HYH01 | Tianma | 3.2" | 240×320 |
| TL060JYXP02 | Tianma | 9.0" | 720×1280 |
| TL055VYXP02 | Tianma | 5.5" | 1080×1920 |
| TM024HYH01 | Tianma | 2.4" | 240×320 |
| TS022GAADY02 | Tianma | 2.2" | 176×220 |
| TM057JYHP03 | Tianma | 5.7" | 720×1280 |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
