Product Details:
|
| Panel Brand: | TIANMA | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Active Area: | 170.4×127.8 Mm | Surface: | Antiglare |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | black and white lcd display,lcd panel screen |
||

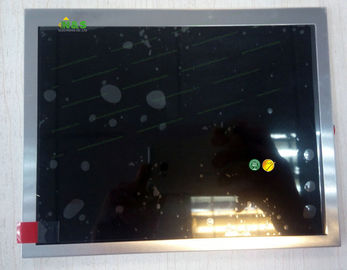

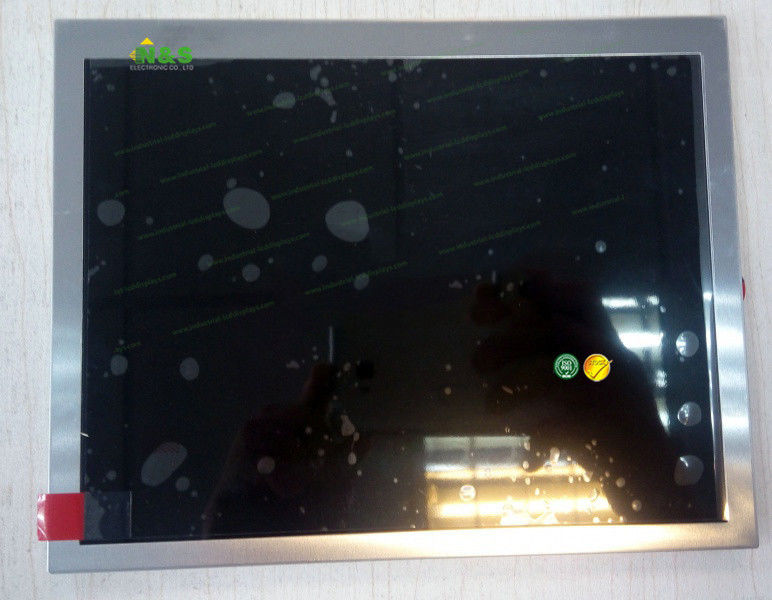

8.4 inch TM084SDHG02 TIANMA Normally White 170.4×127.8 mm Active Area for 60Hz
TM084SDHG02 Information
| Panel Model | TM084SDHG02 |
|---|---|
| Panel Brand | TIANMA |
| Descrition | a-Si TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 170.4×127.8 mm |
| Outline | 189.75×149.4 mm |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Dithering) , CIE1931 50% |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S7P WLED Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) , 60 pins |
| Input Voltage | 3.3V (Typ.) |
| Dot Resolution | 800(RGB)×600 (SVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | TBD |
| Surface | Antiglare |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 173.0×130.8 mm (H×V) |
| Outline Dimension | 189.75×149.4 mm (H×V) |
| Outline Depth | 4.8 (Typ.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
