Product Details:
|
| Panel Brand: | TIANMA | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Display Mode: | TN, Normally White | Frequency: | 60Hz |
| Input Voltage: | 3.3V (Typ.) | ||
| High Light: | black and white lcd display,lcd display white screen |
||

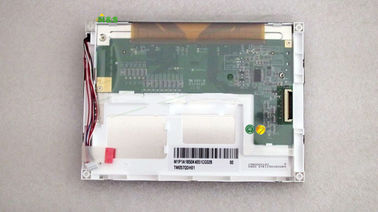

Normally White TIANMA TM057KDH01 5.7 inch 115.2×86.4 mm Active Area for 60Hz
| Panel Model | TM057QDH01 |
|---|---|
| Panel Brand | TIANMA |
| Descrition | a-Si TFT-LCD ,5.7 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 115.2×86.4 mm |
| Outline | 144×104.6×12.8 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) , CIE1931 50% |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 7S3P WLED Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 33 pins |
| Input Voltage | 3.3V (Typ.) |
TM057QDH01 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
|---|---|
| Pixel Configuration | RGB Verti；cal Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.060×0.180 mm (H×V) |
| Pixel Pitch | 0.180×0.180 mm (H×V) |
| Weight | TBD |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 115.2×86.4 mm (H×V) |
| Bezel Area | 118.2×89.4 mm (H×V) |
| Outline Dimension | 144×104.6 mm (H×V) |
| Outline Depth | 12.8 (Max.) mm |
| Holes & Brackets | Rear mounting poles (4-Φ2.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 2~10 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
