TD036THEA3 TFT LCD Module 3.6 inch LCM 320×240 280 400:1 16.7M WLED Serial RGB

TD036THEA3 TFT LCD Module 3.6 inch LCM 320×240 280 400:1 16.7M WLED Serial RGB

TD036THEA3 TFT LCD Module  3.6 inch LCM 	320×240  	280 	400:1 	16.7M 	WLED 	Serial RGB

Product Details:

Place of Origin: KOREA
Brand Name: TPO
Certification: ISO9001
Model Number: TD036THEA3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Brand: TPO Resolution: 320(RGB)×240 , QVGA
Active Area: 72.96×54.72 Mm Outline: 80.2×66.3 Mm

TD036THEA3 TFT LCD Module 3.6 inch LCM 320×240 280 400:1 16.7M WLED Serial RGB



TD036THEA3 Product Information

Panel Size : 3.6 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 111 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.076×0.228 mm (H×V)
Pixel Pitch : 0.228×0.228 mm (H×V)
Weight : 35.0g (Typ.)
Surface : Hard coating (3H)
Active Area : 72.96×54.72 mm (H×V)
Bezel Area : 75.46×57.22 mm (H×V)
Outline Dimension : 80.2×66.3 mm (H×V)
Outline Depth : 3.2 (Typ.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without



What is our advantage?

Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

Delivery Quantity: 50-100 cartons shipped by DHL every week

Supply Ability: 100 pcs Panels per day.

Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

Warranty: 12 months.



FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.



Display Mode : TN, Normally White, Transmissive
Brightness : 280 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 13/22 (Typ.)(Tr/Td)
Viewing Angle : 50/20/40/40 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.310; Wy:0.340
Sunlight Readable : N



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
F-55472GNFQJ-LW-ABN Kyocera 2.8" 128×64
F-55472GNFQJ-LG-ADN Kyocera 2.8" 128×64
F-55472GNFQJ-LB-AEN Kyocera 2.8" 128×64
F-55472GNFJ-SLW-AHN Kyocera 2.8" 128×64
F-55472GNFJ-SLW-AFN Kyocera 2.8" 128×64
F-55472GNFJ-SLW-AAN Kyocera 2.8" 128×64
F-55472GNBJ-LW-AIN Kyocera 2.8" 128×64
F-55472GNBJ-LW-AGN Kyocera 2.8" 128×64

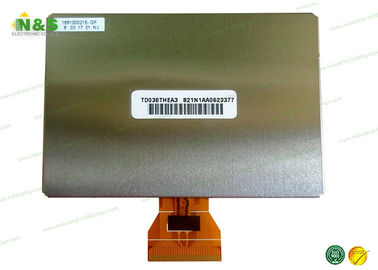

TD036THEA3 Picture



TD036THEA3 TFT LCD Module  3.6 inch LCM 	320×240  	280 	400:1 	16.7M 	WLED 	Serial RGB
