Product Details:
|
Panel Brand: | Tianma | Panel Model: | TM101DDHG01 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
High Light: | black and white lcd display,lcd panel screen |
TM101DDHG01 10.1 inch Tianma LCD Displays 222.72×125.28 mm Active Area
TM101DDHG01 Detail
Panel Brand : | TIANMA |
Panel Model : | TM101DDHG01 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 10.1 inch |
Resolution : | 1024(RGB)×600 , WSVGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 222.72×125.28 mm |
Outline : | 235×143×5.1 mm |
Surface : | Antiglare, Hard coating (3H) |
Brightness : | 450 cd/m² (Typ.) |
Contrast Ratio : | 800:1 (Typ.) |
Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 47% |
Response Time : | 7/9 (Typ.)(Tr/Td) |
Viewing Angle : | 80/80/75/80 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED Embedded (LED Driver) |
Signal Interface : | LVDS (1 ch, 6/8-bit) , 40 pins |
Input Voltage : | 3.3V (Typ.) |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Panel Size : | 10.1 inch |
Dot Resolution : | 1024(RGB)×600 (WSVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 117 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0725×0.2088 mm (H×V) |
Pixel Pitch : | 0.2175×0.2088 mm (H×V) |
Weight : | 202g (Typ.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 222.72×125.28 mm (H×V) |
Bezel Area : | 225.52×128.10 mm (H×V) |
Outline Dimension : | 235×143 mm (H×V) |
Outline Depth : | 4.9±0.3 mm |
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
TM045YYSP02 | Tianma | 4.5" | 480×854 |
TM016XYHP01 | Tianma | 1.6" | 256×320 |
TM050JYSP01 | Tianma | 5.0" | 720×1280 |
TL055VGXP01 | Tianma | 5.5" | 1080×1920 |
TM045YYHP08 | Tianma | 4.5" | 480×854 |
TL050JGXP01 | Tianma | 5.0" | 720×1280 |
TM050JYHP05 | Tianma | 5.0" | 720×1280 |
TM060XYSP01 | Tianma | 6.0" | 540×960 |
TM046XYHP02 | Tianma | 4.7" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

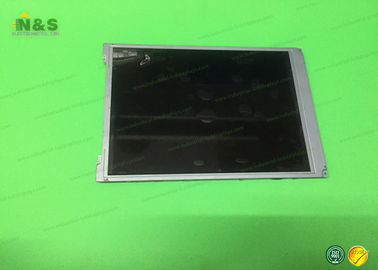

TM101DDHG01 Picture
