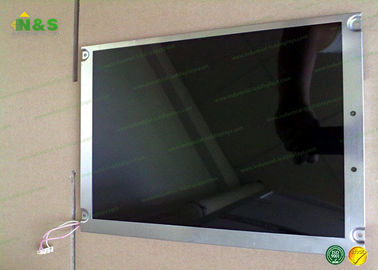

NL204153AC21-22 NLT LCD Panel 21.3" LCM 2048×1536 800 1400:1 1.07B WLED LVDS

NL204153AC21-22 NLT LCD Panel 21.3" LCM 2048×1536 800 1400:1 1.07B WLED LVDS

NL204153AC21-22 NLT LCD Panel  21.3" 	LCM 	2048×1536  	800 	1400:1 	1.07B 	WLED 	LVDS

Product Details:

Place of Origin: KOREA
Brand Name: NLT
Certification: ISO9001
Model Number: NL204153AC21-22

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Resolution: 2048(RGB)×1536 , QXGA Active Area: 433.152×324.864 Mm
Outline: 457×350×23 Mm Brightness: 800 Cd/m² (Typ.)

NL204153AC21-22 NLT LCD Panel 21.3" LCM 2048×1536 800 1400:1 1.07B WLED LVDS

Panel Brand : NLT
Panel Model : NL204153AC21-22
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 21.3 inch
Resolution : 2048(RGB)×1536 , QXGA
Display Mode : UA-SFT, Normally Black
Active Area : 433.152×324.864 mm
Outline : 457×350×23 mm
Surface : Antiglare, Hard coating (2H)
Brightness : 800 cd/m² (Typ.)
Contrast Ratio : 1400 : 1 (Typ.)
Display Colors : 1.07B (10-bit) , CIE1931 72%
Response Time : 20/20 (Typ.)(Tr/Td)
Viewing Angle : 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (4 ch, 10-bit) , 104 pins
Input Voltage : 12.0V (Typ.)



Panel Size : 21.3 inch
Dot Resolution : 2048(RGB)×1536 (QXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 120 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0705×0.2115 mm (H×V)
Pixel Pitch : 0.2115×0.2115 mm (H×V)
Weight : 2.70/2.98Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (2H)
Active Area : 433.152×324.864 mm (H×V)
Bezel Area : 438.2×330.0 mm (H×V)
Outline Dimension : 457×350 mm (H×V)
Outline Depth : 21.5/23.0 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



NL204153AC21-22 NLT LCD Panel 21.3" LCM 2048×1536 800 1400:1 1.07B WLED LVDS

NL204153AC21-22 NLT LCD Panel  21.3" 	LCM 	2048×1536  	800 	1400:1 	1.07B 	WLED 	LVDS
