15.0 inch QD15XL02 Rev.01 QDI LCD Panel with 304.1×228.1 mmActive Area

15.0 inch QD15XL02 Rev.01 QDI LCD Panel with 304.1×228.1 mmActive Area

15.0 inch QD15XL02 Rev.01  QDI  LCD  Panel  with 304.1×228.1 mmActive Area

Product Details:

Place of Origin: korea
Brand Name: QDI
Certification: ISO9001
Model Number: QD15XL02 Rev.01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Brand: QDI Panel Model: QD15XL02 Rev.01
Panel Type: A-Si TFT-LCD , LCM Panel Size: 15.0 Inch
Resolution: 1024(RGB)×768 , XGA Display Mode: TN, Normally White, Transmissive

15.0 inch QD15XL02 Rev.01 QDI LCD Panel with 304.1×228.1 mmActive Area


QD15XL02 Rev.01 Detail

Panel Brand : QDI
Panel Model : QD15XL02 Rev.01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 15.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 304.1×228.1 mm
Outline : 321×249 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/65/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 20 pins
Input Voltage : 3.3V (Typ.)


Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!


Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : TBD
Surface : Antiglare, Hard coating (3H)
Active Area : 304.1×228.1 mm (H×V)
Bezel Area : 307.72×231.7 mm (H×V)
Outline Dimension : 321×249 mm (H×V)
Outline Depth : 10.5 (Typ.) mm
Holes & Brackets : Side mounting holes (8-M2.5) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.


Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
QD14XL19 QDI 14.1" 1024×768
QD14XL12 Rev.02 QDI 14.1" 1024×768
QD14XL07 Rev.02 QDI 14.1" 1024×768
QD23WL04 Rev.01 QDI 23.0" 1280×768
QD15XL02 Rev.02 QDI 15.0" 1024×768
QD32HL05 Rev.01 QDI 31.5" 1366×768
QD14TL02 Rev.03 QDI 14.1" 1280×800
QD141X1LH03 QDI 14.1" 1024×768
QD32HL06 Rev.02 QDI 31.5" 1366×768

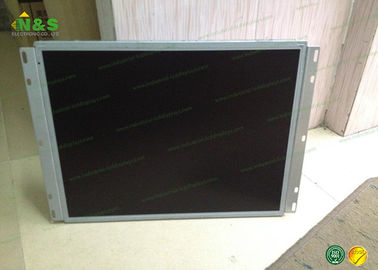

QD15XL02 Rev.01 Picture


15.0 inch QD15XL02 Rev.01  QDI  LCD  Panel  with 304.1×228.1 mmActive Area
