Product Details:
|
| Panel Brand: | Giantplus | Panel Model: | GPM782A0 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd panel |
||
G104SN05 V0 Giantplus LCD Panel 3.5 inch for Protable Navigation panel
GPM782A0 Detail
| Panel Brand : | Giantplus |
| Panel Model : | GPM782A0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 70.08×52.56 mm |
| Outline : | 76.9×63.9 mm |
| Surface : | |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S1P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) + SPI , 54 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 73.1×55.5 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 3.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| GPN3014G1A6D | Giantplus | 1.4" | 240×280 |
| GPN3012G116G | Giantplus | 1.2" | 240×240 |
| GPN5062Y110G | Giantplus | 6.2" | 640×320 |
| GPN5035M21CG | Giantplus | 3.5" | 800×600 |
| GPM1316D0 | Giantplus | 4.0" | 480×800 |
| GPG48241QN1 | Giantplus | 1.8" | 480×240 |
| GPM1363 | Giantplus | 5.8" | 540×960 |
| GPM1368A0 | Giantplus | 5.4" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

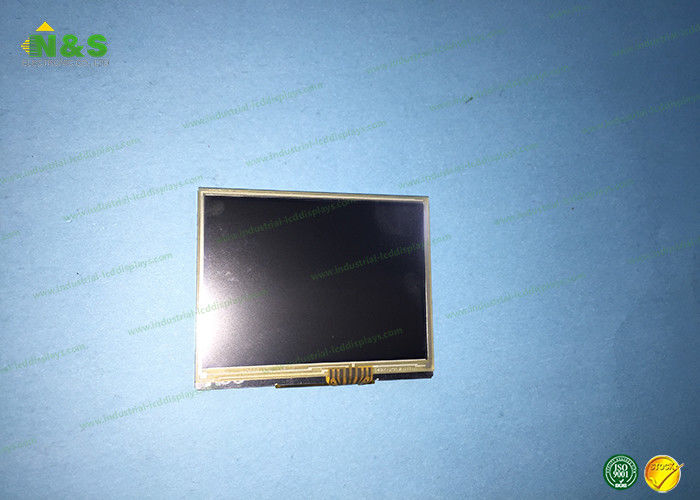

GPM782A0 Picture
