Product Details:
|
| Panel Brand: | Mitsubishi | Panel Model: | AA057VF12 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.7 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd panel,tft lcd display module |
||
5.7 inch AA057VF12 Mitsubishi LCD Panel with 115.2×86.4 mm
AA057VF12 Detail
| Panel Brand : | Mitsubishi |
| Panel Model : | AA057VF12 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 135×104.6×9.35 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 1100 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | CMOS (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
| Panel Size : | 5.7 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | 165g (Typ.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 119.2×90.4 mm (H×V) |
| Outline Dimension : | 135×104.6 mm (H×V) |
| Outline Depth : | 8.85±0.5 mm |
| Holes & Brackets : | Rear mounting holes (4-Φ2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150XN21 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA121XN11-DE-01 | Mitsubishi | 12.1" | 1024×768 |
| AA104XF12-DE-02 | Mitsubishi | 10.4" | 1024×768 |
| AA084XE11-DA-02 | Mitsubishi | 8.4" | 1024×768 |
| AA084XE11-DA-01 | Mitsubishi | 8.4" | 1024×768 |
| AA084SD11-CA-01 | Mitsubishi | 8.4" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

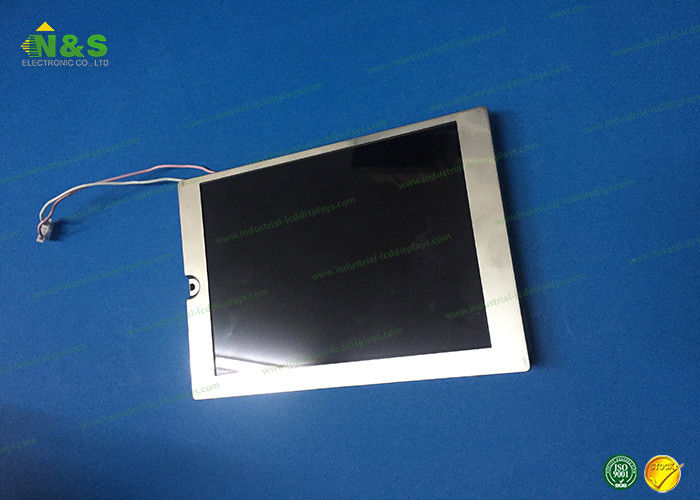

AA057VF12 Picture
