Product Details:
|
| Panel Brand: | Tianma | Panel Model: | TM150TDS50 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 15.0 Inch |
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd display module |
||
15.0 inch TM150TDS50 Tianma LCD Panel Normally White with 304.128×228.096 mm
TM150TDS50 Product Information
| Panel Brand : | TIANMA |
| Panel Model : | TM150TDS50 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 326.5×253.5×12.1 mm |
| Surface : | Antiglare |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 60% |
| Response Time : | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.00Kgs (Typ.) |
| Surface : | Antiglare |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 11.8±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Packaging & Delivery

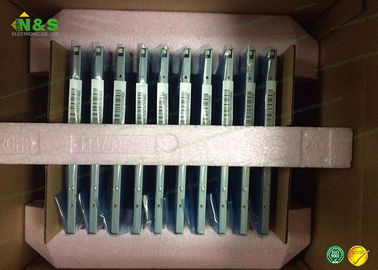

Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

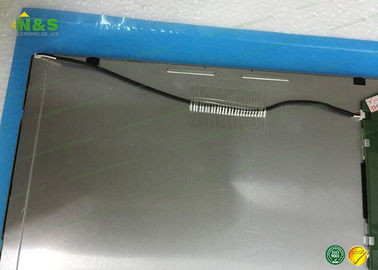

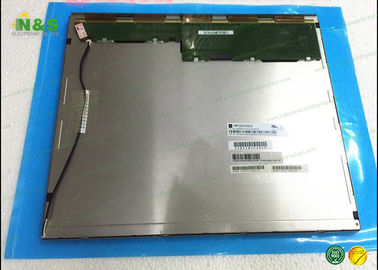

TM150TDS50 Picture
