Product Details:
|
| Panel Brand: | PVI | Panel Model: | PA050DS7 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
| Resolution: | 320(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd panel |
||
PA050DS7 PVI LCD Panel 5.0 inch Antiglare with 102.72×74.53 mm
PA050DS7 Specification
| Panel Brand : | PVI |
| Panel Model : | PA050DS7 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 320(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 102.72×74.53 mm |
| Outline : | 127.4×92.8×13.4 mm |
| Surface : | Antiglare |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | Full color |
| Response Time : | 15/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Analog RGB + Composite Video (NTSC/PAL) , 20 pins |
| Input Voltage : | 5.0/5.0/17.0/-15.0V (Typ.)(VCC/VDD/VGH/VGL) |
| Panel Size : | 5.0 inch |
| Dot Resolution : | 320(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 79 PPI |
| Aspect Ratio : | 7:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1070×0.3185 mm (H×V) |
| Pixel Pitch : | 0.3210×0.3185 mm (H×V) |
| Weight : | 164±10g |
| Surface : | Antiglare |
| Active Area : | 102.72×74.53 mm (H×V) |
| Bezel Area : | 105.32×77.13 mm (H×V) |
| Outline Dimension : | 127.4×92.8 mm (H×V) |
| Outline Depth : | 7.9/13.4 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

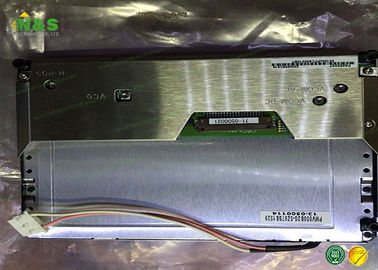

PA050DS7 Picture
