Product Details:
|
| Surface: | Antiglare (Haze 2%) | Resolution: | 3840(RGB)×2160 , UHD |
|---|---|---|---|
| Active Area: | 1073.78×604 Mm | Response Time: | 6.5 (Typ.)(G To G) |
| High Light: | tft lcd screen,tft lcd display module |
||

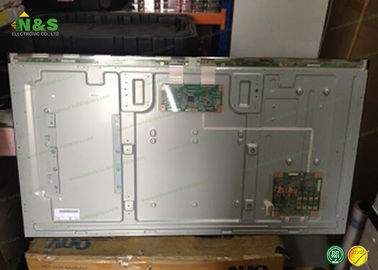

49 inch MT4851D01-3 TFT LCD Module with 1073.78×604 mm for TV Sets panel
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
MT4851D01-3 TFT LCD Module Detail
| Panel Brand : | CSOT |
| Panel Model : | MT4851D01-3 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 49 inch |
| Resolution : | 3840(RGB)×2160 , UHD |
| Display Mode : | HVA, Normally Black, Transmissive |
| Active Area : | 1073.78×604 mm |
| Outline : | 1090.98×623.6 mm |
| Surface : | Antiglare (Haze 2%) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 4000:1 (Typ.) |
| Display Colors : | 1.07B (8-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 6.5 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 120Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | V-by-One 8 lane , 51 pins |
| Input Voltage : | 12.0V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| E499HAM1 | EDO | 5.0" | 720×1280 |
| M595HBU1 | EDO | 6.0" | 720×1280 |
| M499HBU1 | EDO | 5.0" | 720×1280 |
| E499HAA1 | EDO | 5.0" | 720×1280 |
| E555HAA1 | EDO | 5.5" | 720×1280 |
| E595HAA1 | EDO | 6.0" | 720×1280 |
| E1392AM1.A | EDO | 1.39" | 400×400 |
| E559FMM1 | EDO | 5.6" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 49 inch |
| Dot Resolution : | 3840(RGB)×2160 (UHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09321×0.27963 mm (H×V) |
| Pixel Pitch : | 0.27963×0.27963 mm (H×V) |
| Weight : | 12.0Kgs (Max.) |
| Surface : | Antiglare (Haze 2%) |
| Active Area : | 1073.78×604 mm (H×V) |
| Bezel Area : | 1077.8×609.0 mm (H×V) |
| Outline Dimension : | 1090.98×623.6 mm (H×V) |
| Outline Depth : | 14.4 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
