Product Details:
|
| Signal Interface: | LVDS (2 Ch, 8-bit) , 51 Pins | Active Area: | 1018.08×572.67 Mm |
|---|---|---|---|
| Outline: | 1054.9×610.8 Mm | Resolution: | 1920(RGB)×1080 , FHD |
| High Light: | tft lcd screen,tft lcd panel |
||
Hard coating MT4601B02-1 CSOT LCD Module 46 inch for TV Sets panel
MT4601B02-1 CSOT LCD Module Detail
| Panel Brand : | CSOT |
| Panel Model : | MT4601B02-1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 46 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | HVA, Normally Black, Transmissive |
| Active Area : | 1018.08×572.67 mm |
| Outline : | 1054.9×610.8 mm |
| Surface : | Antiglare (Haze 2%), Hard coating (2H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 4000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 6.5 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (2 ch, 8-bit) , 51 pins |
| Input Voltage : | 12.0V (Typ.) |
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ST4851B01-1 | CSOT | 49" | 1920×1080 |
| ST5461D01-4 | CSOT | 55" | 3840×2160 |
| ST5461B05-6 | CSOT | 55" | 1920×1080 |
| ST2151B01-1 | CSOT | 21.5" | 1920×1080 |
| ST4251B01-1 | CSOT | 43" | 1920×1080 |
| ST4761B01-7 | CSOT | 48" | 1920×1080 |
| ST5461D04-2 | CSOT | 55" | 3840×2160 |
| ST4761B02-1 | CSOT | 48" | 1920×1080 |
| ST5461D02-1 | CSOT | 55" | 3840×2160 |
| ST2751A01-8 | CSOT | 27.5" | 1366×768 |
| ST3151A05-9 | CSOT | 31.5" | 1366×768 |
| ST2751A01-6 | CSOT | 27.5" | 1366×768 |
| ST5461B05-2 | CSOT | 55" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 46 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 47 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.17675×0.53025 mm (H×V) |
| Pixel Pitch : | 0.53025×0.53025 mm (H×V) |
| Weight : | 9.5Kgs (Max.) |
| Surface : | Antiglare (Haze 2%), Hard coating (2H) |
| Active Area : | 1018.08×572.67 mm (H×V) |
| Bezel Area : | 1024.9×579.3 mm (H×V) |
| Outline Dimension : | 1054.9×610.8 mm (H×V) |
| Outline Depth : | 10.8 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

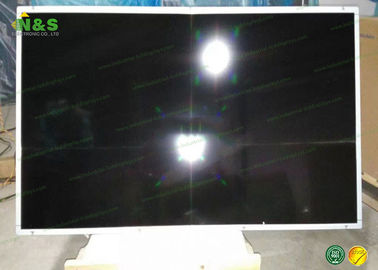

MT4601B02-1 CSOT LCD Module Picture
