Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 2.0 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | Normally Black, Transflective |
| Active Area: | 30.24×40.32 Mm | Outline: | 34.24×48.92 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

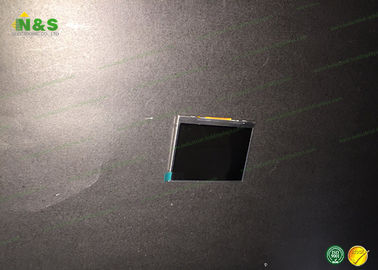

L5F30515P00 TFT LCD Module Epson 2.0" LCM 240×320 310 65:1 16.7M WLED CPU
L5F30515P00 Information
| Panel Size : | 2.0 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 201 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.042×0.126 mm (H×V) |
| Pixel Pitch : | 0.126×0.126 mm (H×V) |
| Weight : | 9.00g |
| Active Area : | 30.24×40.32 mm (H×V) |
| Bezel Area : | 32.24×43.32 mm (H×V) |
| Outline Dimension : | 34.24×48.92 mm (H×V) |
| Outline Depth : | 2.6 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : | Normally Black, Transflective |
| Brightness : | 310 cd/m² (Typ.) |
| Contrast Ratio : | 65 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 9:1 (Typ.) (Reflective) |
| Display Color : | 16.7M (8-bit) |
| Viewing Direction : | Symmetry |
| Sunlight Readable : | Y |
