Product Details:
|
| Resolution: | 1280(RGB)×768 , WXGA | Panel Size: | 10.6 Inch |
|---|---|---|---|
| Display Colors: | UA-SFT, Normally Black, Transmissive | Active Area: | 230.4×138.24 Mm |
| Outline: | 248.8×155.8×7 Mm | Surfac: | Clear, Hard Coating (3H) |
| High Light: | tft lcd screen,tft lcd panel |
||
NL12876AC18-03 10.6 inch TFT LCD Module NLT Normally Black with 230.4×138.24 mm
NL12876AC18-03 Specification
| Panel Size : | 10.6 inch |
| Dot Resolution : | 1280(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | 270/295g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 230.4×138.24 mm (H×V) |
| Bezel Area : | 233.4×141.3 mm (H×V) |
| Outline Dimension : | 248.8×155.8 mm (H×V) |
| Outline Depth : | 6.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | UA-SFT, Normally Black, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 13/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
| ED097OD2 | E Ink | 9.7" | 1200×825 |

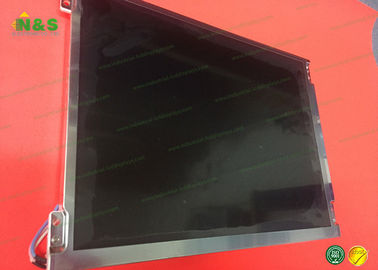

NL12876AC18-03 Picture
