Product Details:
|
| Resolution: | 800(RGB)×480 , WVGA | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Panel Type: | STN-LCD , LCM | Display Colors: | 262K/16.7M (6-bit / 6-bit + Dithering) , CIE1931 49% |
| High Light: | black and white lcd display,lcd panel screen |
||
7.0 inch TM070RBH10-20 Tianma LCD Displays Normally White LCM 800×480 280 500:1 262K/16.7M WLED TTL
TM070RBH10-20 Detail
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0642×0.1790 mm (H×V) |
| Pixel Pitch : | 0.1926×0.1790 mm (H×V) |
| Weight : | 195g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 154.08×85.92 mm (H×V) |
| Outline Dimension : | 164.9×100 mm (H×V) |
| Outline Depth : | 6.8±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissiv |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Gamut : | 49% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.317; Wy:0.334 |
| White Variation : | 1.33 (Typ.)(9 points) |
| Sunlight Readable : | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM060SDH01 | Tianma | 6.0" | 800×600 |
| TM128128A4KFWGWC69-1 | Tianma | 1.5" | 128×128 |
| TM12864LCAWG | Tianma | 2.2" | 128×64 |
| TM9616AGHWGNA | Tianma | 0.84" | 96×16 |
| TM128160LKFWG5-1 | Tianma | 1.8" | 128×160 |
| TM320240EGFWVSWD | Tianma | 5.7" | 320×240 |
| TM320240ECCWVSWD | Tianma | 5.7" | 320×240 |
| TM240128ABCWVBYD | Tianma | 4.8" | 240×128 |
| TM24064BBCWVBYD | Tianma | 5.2" | 240×64 |
| TM12864G3CIWGNA1-1 | Tianma | 2.4" | 128×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

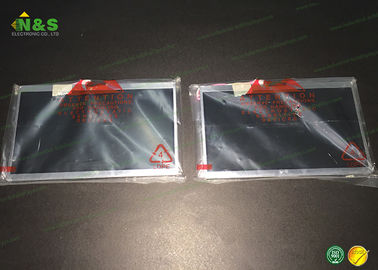

TM070RBH10-20 Picture
