Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 304.1×228.1 Mm |
| Display Mode: | TN, Normally White, Transmissive | Outline: | 317.3×242.1 Mm |
| Surface: | Antiglare | Brightness: | 190 Cd/m² (Typ.) |
| High Light: | tft lcd screen,tft lcd panel |
||
Antiglare TM150XG-02L11 LCD Module SANYO 15.0 inch LCM 1024×768 190 300:1 262K CCFL LVDS
TM150XG-02L11 Specification
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight : | 555g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 307.7×231.7 mm (H×V) |
| Outline Dimension : | 317.3×242.1 mm (H×V) |
| Outline Depth : | 6.0(Max.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Side mounting holes (8-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode | TN, Normally White, Transmissive |
| Brightness : | 190 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 20/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/10/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.45 (Max.)(5 points) |
| Sunlight Readable : | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

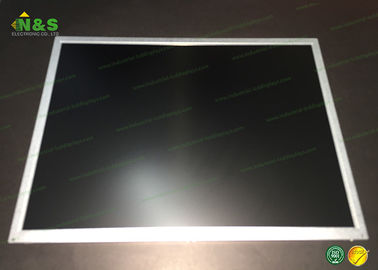

TM150XG-02L11 Picture
