Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | HFFS, Normally Black, Transmissive |
| Active Area: | 223.341×125.568 Mm | Outline: | 234.53×138.97×4.4 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

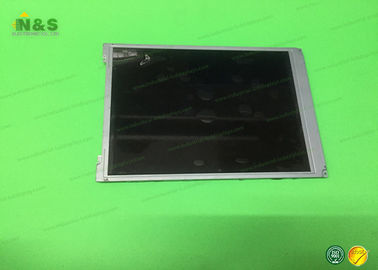

CLAA101WJ05 TFT LCD Module CPT 10.1" LCM 1366×768 400 800:1 16.7M WLED MIPI
CLAA101WJ05 Information
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 155 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0545×0.1635 mm (H×V) |
| Pixel Pitch : | 0.1635×0.1635 mm (H×V) |
| Weight : | 115g (Max.) |
| Surface : | Hard coating |
| Active Area : | 223.341×125.568 mm (H×V) |
| Outline Dimension : | 234.53×138.97 mm (H×V) |
| Outline Depth : | 2.4/4.4 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | HFFS, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(13 points) |
| Sunlight Readable : | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
