Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
---|---|---|---|
Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
Active Area: | 153.6×90 Mm | Outline: | 65×102×5.2 Mm |
High Light: | tft lcd panel,tft lcd display module |

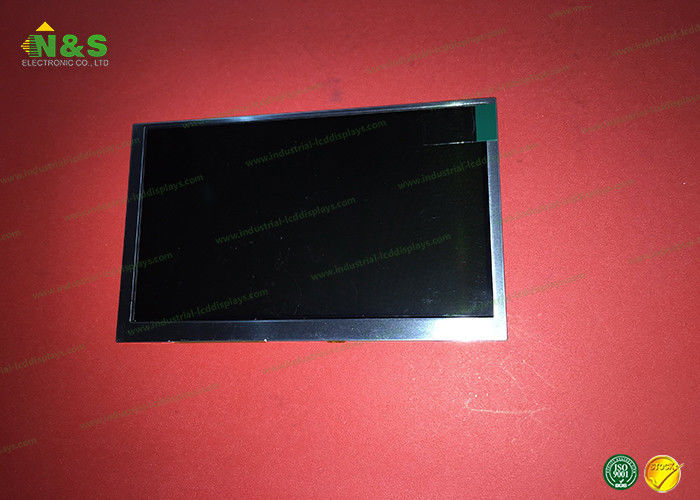

Normally White CLAA070NA01CW TFT LCD Module CPT 7.0 inch 1024×600
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
CLAG045LJ72 | CPT | 4.5" | 480×854 |
CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
CLAD015GC41 AX | CPT | 1.5" | 240×240 |
CLAA090WK05XN | CPT | 9.0" | 1280×720 |
CLAC080XA12LW | CPT | 8.0" | 1024×768 |
CLAD015GB01 AX | CPT | 1.5" | 240×240 |
CLAG045LG71 XX | CPT | 4.5" | 480×854 |
CLAG045LH41 AXXA | CPT | 4.5" | 480×854 |
CLAF020GC21A0 | CPT | 2.0" | 240×320 |
CLAN080WQ65 XG | CPT | 8.0" | 800×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
CLAA070NA01CW Information
Panel Size : | 7.0 inch |
Dot Resolution : | 1024(RGB)×600 (WSVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 169 PPI |
Aspect Ratio : | 17:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.050×0.150 mm (H×V) |
Pixel Pitch : | 0.150×0.150 mm (H×V) |
Weight : | 110g (Typ.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 153.6×90 mm (H×V) |
Bezel Area : | 156.5×92.9 mm (H×V) |
Outline Dimension : | 165×102 mm (H×V) |
Outline Depth : | 3.9/5.2 (Typ./Max.) mm |
Holes & Brackets : | Without |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Response Time : | 20 (Typ.)(Tr+Td) |
Viewing Angle : | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.25/1.43 (Typ./max.)(9 points) |
Sunlight Readable : | N |
