Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024 , SXGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 376.32×301.056 Mm | Outline: | 404.2×330 Mm |
| High Light: | tft lcd panel,tft lcd display module |
||

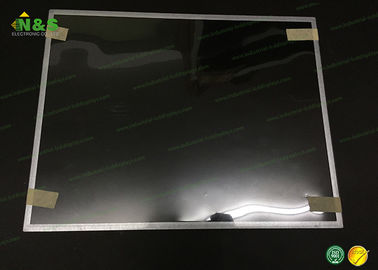

19.0 inch AA190EB01 TFT LCD Module Mitsubishi with 376.32×301.056 mm Active Area
AA190EB01 DETAIL
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 379.9×304.7 mm (H×V) |
| Outline Dimension : | 404.2×330 mm (H×V) |
| Outline Depth : | 14.9 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.30 (Max.)(5 Points) |
| Sunlight Readable : | Y |
Our Advantages
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150XN21 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
