Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 9.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 196.8×118.08 Mm | Outline: | 219×136.2×10 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

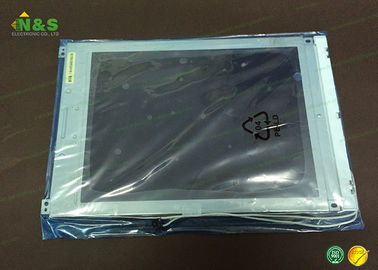

Normally White AA090MF11 TFT LCD Module Mitsubishi 9.0 inch LCM with 196.8×118.08 mm
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packing & Delivery for our LCD Screen Panel Replacements:
AA090MF11 Information
| Panel Size : | 9.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 103 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.082×0.246 mm (H×V) |
| Pixel Pitch : | 0.246×0.246 mm (H×V) |
| Weight : | 340g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 196.8×118.08 mm (H×V) |
| Bezel Area : | 199.4×120.7 mm (H×V) |
| Outline Dimension : | 219×136.2 mm (H×V) |
| Outline Depth : | 7.0/10.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 1500 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 8-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA142XC03 | Mitsubishi | 14.2" | 1024×768 |
| AA142XC02 | Mitsubishi | 14.2" | 1024×768 |
| AA142XC01 | Mitsubishi | 14.2" | 1024×768 |
| AA142XB11 | Mitsubishi | 14.2" | 1024×768 |
| AA142XB02 | Mitsubishi | 14.2" | 1024×768 |
| AA141XB11 | Mitsubishi | 14.1" | 1024×768 |
