Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 170.88×128.16 Mm | Outline: | 199.5×149×12 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

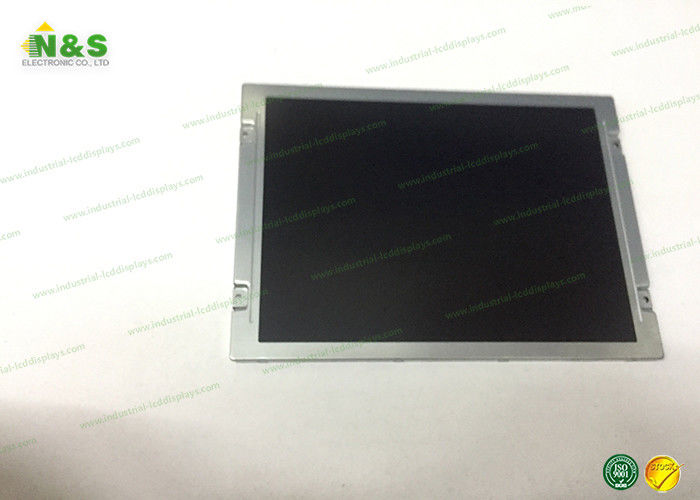

Normally White AA084VC04 TFT LCD Module Mitsubishi 8.4 inch 640×480
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
AA084VC04 Information
| Panel Size : | 8.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089×0.267 mm (H×V) |
| Pixel Pitch : | 0.267×0.267 mm (H×V) |
| Weight : | 360g (Typ.) |
| Surface : | Hard coating (2H), Antireflection |
| Active Area : | 170.88×128.16 mm (H×V) |
| Bezel Area : | 174.9×132.2 mm (H×V) |
| Outline Dimension : | 199.5×149 mm (H×V) |
| Outline Depth : | 11.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 480 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.311; Wy:0.327 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
